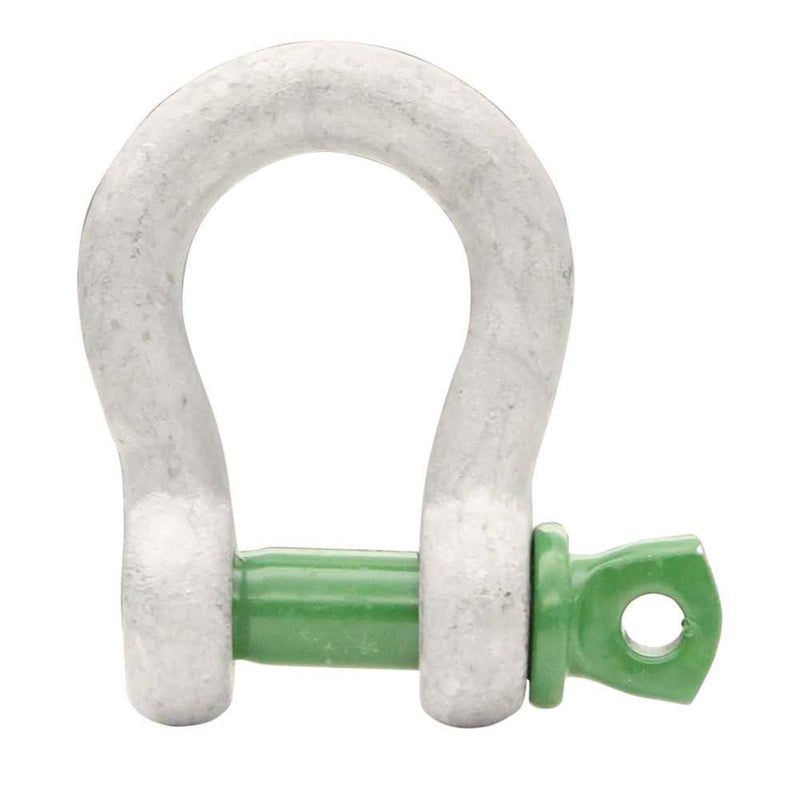

Screw Pin Anchor Shackle

Choose product options:
$4.00 $6.00
Maximum quantity available reached.
Product Description
Sku:

Description

The Green Pin® Bow Shackle SC is a bow shackle with a screw collar pin. The screw pin enables quick (dis)assembly which makes the shackle perfect for rigging activities in which assembly and disassembly occur relatively frequently. The Green Pin® Bow Shackle SC can be used for both one-leg and multi-leg systems. Due to the galvanization of the shackle its long-term durability is assured. The shackle's design reduces the wear of (wire) rope as the screw thread is hidden in a chamber. Particularly important for use offshore, the Green Pin® Bow Shackle SC conforms to a wide range of certifications from class societies such as DNV GL. The shackle is available in a range with a working load limit from 0.33 up to 55 ton.

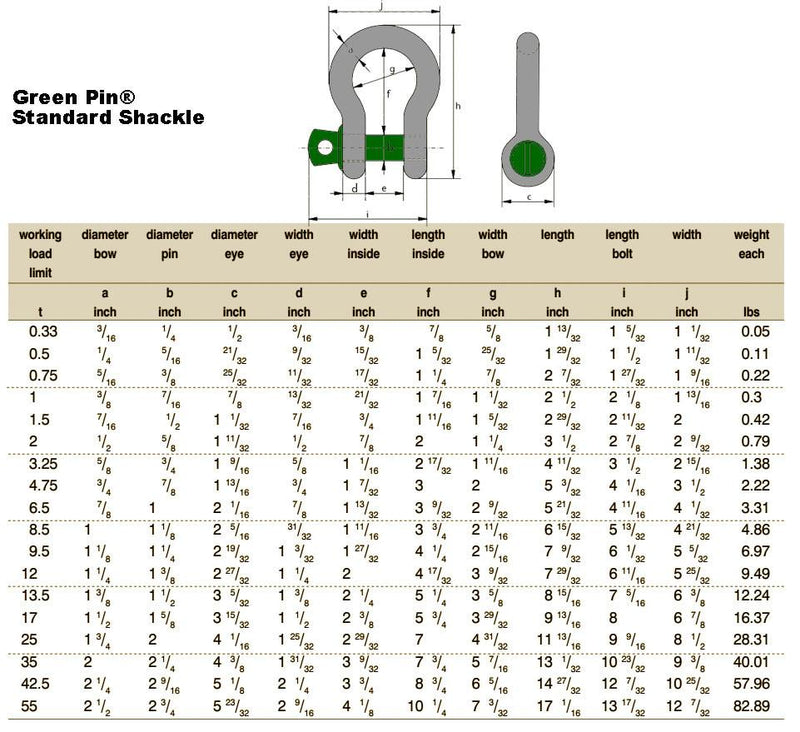

Product details

Product Code: G-4161

Material: bow and pin high tensile steel, Grade 6, quenched and tempered

Safety factor: MBL equals 6 x WLL

Finish: Hot dipped galvanized

Temp. range: -40°C up to +200°C
